Preprocess Reference Expression data for Web App

This vignette demonstrates how to preprocess your own perturb-seq pilot data for use with the PerturbPlan web application and power analysis functions.

library(perturbplan)
library(ggplot2)
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union

Overview

This preprocessing workflow consists of two main steps:

reference_data_preprocessing_10x(): Loading raw data from multiple SRR runs of raw Cell Ranger outputs and processing them into a list containing:
- Gene-by-cell expression matrix
- UMI-level molecule information dataframe
- Proportion of reads confidently mapped to the whole transcriptome among all reads
reference_data_processing(): Fitting statistical models with the output from Step 1 and obtaining expression data, library and sequencing parameters required for power analysis. These parameters include:
- Baseline expression statistics: Baseline gene expression data: response_id, relative_expression and expression_size
- Library parameters: Reads-UMI saturation curve parameters from preseqR including: method_used (ZTNB/RFA), UMI_per_cell_at_saturation, reads_norm, n_cells, and method-specific parameters. These characterize library size and sequencing saturation dynamics given the cell type and assay of interest
- Mapping efficiency: Proportion of reads that are confidently mapped to the transcripts of genes we’re interested in.

The output after the two-step preprocessing can be uploaded to the Web App as custom reference data.

Step 1: Process Cell Ranger Outputs

The reference_data_preprocessing_10x() function aggregates Cell Ranger outputs from multiple sequencing runs (SRRs) into a single data structure.

Input Requirements

Your data should be organized with Cell Ranger output directories under a top-level folder:

path_to_top_level_output/
├── SRR_run_1/
│   ├── outs/
│   │   ├── filtered_feature_bc_matrix/
│   │   │   ├── barcodes.tsv.gz
│   │   │   ├── features.tsv.gz
│   │   │   └── matrix.mtx.gz
│   │   ├── molecule_info.h5
│   │   ├── filtered_feature_bc_matrix.h5
│   │   └── metrics_summary.csv
├── SRR_run_2/
│   └── ...
└── SRR_run_3/
    └── ...

The SRR directories should be generated by a recent version of Cell Ranger count (not Cell Ranger multi) configured for the perturbation (CRISPR or Perturb-seq) workflow using standard output format. For more information about input format and required fields, see ?obtain_qc_response_data, ?obtain_qc_read_umi_table, and ?obtain_mapping_efficiency.

Note:

Cell Ranger multi is not currently supported because: (1) its output directory structure places files under outs/per_sample_outs/{sample_id}/count/ instead of directly under outs/, and (2) its metrics_summary.csv uses a row-based format with “Library Type” and “Metric Name” columns, while Cell Ranger count uses a column-based format where metric names are column headers.
In some cases, the subfolder filtered_feature_bc_matrix may need to be created by unzipping the filtered_feature_bc_matrix.tar.gz file.
Each metrics_summary.csv file must include a column named “Number of Reads” (Cell Ranger count format), which is required to estimate mapping efficiency.

Function Usage

There’s an example SRR folder called cellranger_tiny under the folder extdata in our package, and we’ll use that for demonstration:

# Point to directory containing example Cell Ranger outputs
extdata_path <- system.file("extdata", package = "perturbplan")

# Aggregate data from all SRR runs
raw_data <- reference_data_preprocessing_10x(
  path_to_top_level_output = extdata_path,
  path_to_run_level_output = "cellranger_tiny",  # Only read subfolder cellranger_tiny
  h5_rough = TRUE,  # Use first SRR for QC data (faster)
  skip_mapping_efficiency = FALSE  # Estimate mapping efficiency
)

Arguments:

path_to_top_level_output: Path to directory containing Cell Ranger run-level subdirectories
path_to_run_level_output: Optional character vector specifying subset of run directories to process
h5_rough: If TRUE (default), the function will extract the UMI-level molecule information dataframe from first SRR only for speed. If FALSE, combines UMI-level molecule information from all SRRs
skip_mapping_efficiency: If TRUE, skips estimation of mapping efficiency. If FALSE (default), calculates naive mapping efficiency using data from a properly formatted metrics_summary.csv file as described above.

Function Output

# Inspect structure
str(raw_data)
#> List of 3
#>  $ response_matrix   :Formal class 'dgCMatrix' [package "Matrix"] with 6 slots
#>   .. ..@ i       : int [1:11] 0 1 2 3 4 1 2 1 4 1 ...
#>   .. ..@ p       : int [1:9] 0 1 2 3 4 5 7 9 11
#>   .. ..@ Dim     : int [1:2] 5 8
#>   .. ..@ Dimnames:List of 2
#>   .. .. ..$ : chr [1:5] "ENSG00000243485" "ENSG00000238009" "ENSG00000239945" "ENSG00000241860" ...
#>   .. .. ..$ : chr [1:8] "AGCAGCCGTCCAAGTT-1" "AAACGGGTCAGCTCGG-1" "AAAGTAGCATCCCACT-1" "AAACCTGGTATATGAG-1" ...
#>   .. ..@ x       : num [1:11] 1 1 1 1 1 1 1 1 1 1 ...
#>   .. ..@ factors : list()
#>  $ read_umi_table    :'data.frame':  11 obs. of  5 variables:
#>   ..$ num_reads  : int [1:11] 2 1 1 2 1 1 1 1 1 1 ...
#>   ..$ UMI_id     : num [1:11] 139105 723247 998389 622094 584568 ...
#>   ..$ cell_id    : chr [1:11] "AAACCTGGTATATGAG-1" "AAACGGGTCAGCTCGG-1" "AAAGTAGCATCCCACT-1" "AAAGTAGTCCAAATGC-1" ...
#>   ..$ response_id: chr [1:11] "ENSG00000241860" "ENSG00000238009" "ENSG00000239945" "ENSG00000286448" ...
#>   ..$ srr_idx    : chr [1:11] "cellranger_tiny" "cellranger_tiny" "cellranger_tiny" "cellranger_tiny" ...
#>  $ mapping_efficiency: num 1

Format of each output:

response_matrix: a sparse gene-by-cell expression matrix (genes as rows, cells as columns) with row and column names
read_umi_table: a dataframe with UMI-level molecule information, including columns:
- num_reads: Number of reads supporting this UMI-cell combination
- UMI_id: UMI index of this UMI-cell combination
- cell_id: Cell barcode of this UMI-cell combination
- response_id: Gene identifier (e.g., Ensembl ID)
- srr_idx: SRR run identifier of the UMI
mapping_efficiency: A numeric value between 0 and 1 if skip_mapping_efficiency = FALSE, and NULL if skip_mapping_efficiency = TRUE. This represents the proportion of reads that are confidently mapped to the transcriptome and assigned to a true cell barcode (i.e., a cell barcode that appears in the filtered expression matrix) among all raw reads recorded in metrics_summary.csv

Step 2: Extract Reference Data

The reference_data_processing() function fits statistical models to extract gene expression data, library parameters and more sophisticated mapping efficiency required by PerturbPlan. We postpone the details of these two models to the end of this document.

Input Requirements

The input format of the function is the same as the output format of the function reference_data_preprocessing_10x().

Function Usage

We demonstrate two use cases of reference_data_processing() with the aggregated data from Step 1 (raw_data): one for perturb-seq experimental design using all genes, and one for TAP-seq experimental design using a targeted gene list.

# Set seed for reproducibility
set.seed(123)

# Process into final pilot data format with all genes, suitable for perturb-seq experimental design
pilot_data_perturbseq <- reference_data_processing(
  response_matrix = raw_data$response_matrix,
  read_umi_table = raw_data$read_umi_table,
  mapping_efficiency = raw_data$mapping_efficiency,
  gene_list = NULL,     # Use all genes
  TPM_thres = 0.1,      # Default expression threshold for filtering
  h5_only = FALSE,      # Set TRUE to skip expression model fitting
  n_threads = NULL      # No parallel processing
)
#> Starting pilot data preprocessing @ 2026-01-26 12:39:38.974451
#> Step 1: Computing gene expression information...
#> Start relative expression calculation @ 2026-01-26 12:39:38.982427
#> Finish relative expression calculation @ 2026-01-26 12:39:38.983131
#> Number of genes passing TPM threshold: 5
#> Start dispersion estimation (12 thread(s)) @ 2026-01-26 12:39:38.983361
#> [theta_batch_cpp] Starting computation
#>  - G (genes) = 5
#>  - C (cells) = 8
#> [gene 0] rel_expr = 0.0909091
#> [gene 0] t_0 = 0.0747664
#> [gene 0] theta_mle_row result = 401.014
#> [gene 1] rel_expr = 0.363636
#> [gene 1] t_0 = 1.06889
#> [gene 1] theta_mle_row result = 484.176
#> [gene 2] rel_expr = 0.181818
#> [gene 2] t_0 = 0.272921
#> [gene 2] theta_mle_row result = 468.498
#> [gene 3] rel_expr = 0.181818
#> [gene 3] t_0 = 0.272921
#> [gene 3] theta_mle_row result = 468.498
#> [gene 4] rel_expr = 0.181818
#> [gene 4] t_0 = 0.272921
#> [gene 4] theta_mle_row result = 468.498
#> [theta_batch_cpp] Done.
#> Finish dispersion estimation @ 2026-01-26 12:39:38.984562
#> Step 2: Estimating library parameters...
#> Completed pilot data preprocessing @ 2026-01-26 12:39:38.987927
#> Processed 5 genes
#> UMI_per_cell_at_saturation = 5, Model = ZTNB
#> Mapping efficiency = 1

# Process into pilot data format with targetd genes only, suitable for TAP-seq experimental design
gene_list <- c("ENSG00000241860", "ENSG00000238009", "ENSG00000239945")
pilot_data_tapseq <- reference_data_processing(
  response_matrix = raw_data$response_matrix,
  read_umi_table = raw_data$read_umi_table,
  mapping_efficiency = raw_data$mapping_efficiency,
  gene_list = gene_list, # Restrict to specific genes
  TPM_thres = 0          # No expression threshold for filtering
)
#> Starting pilot data preprocessing @ 2026-01-26 12:39:38.988754
#> Step 1: Computing gene expression information...
#> Start relative expression calculation @ 2026-01-26 12:39:38.993749
#> Finish relative expression calculation @ 2026-01-26 12:39:38.993964
#> Number of genes passing TPM threshold: 3
#> Start dispersion estimation (12 thread(s)) @ 2026-01-26 12:39:38.994181
#> [theta_batch_cpp] Starting computation
#>  - G (genes) = 3
#>  - C (cells) = 8
#> [gene 0] rel_expr = 0.5
#> [gene 0] t_0 = 1.33333
#> [gene 0] theta_mle_row result = 486.513
#> [gene 1] rel_expr = 0.25
#> [gene 1] t_0 = 0.5
#> [gene 1] theta_mle_row result = 475.754
#> [gene 2] rel_expr = 0.25
#> [gene 2] t_0 = 0.5
#> [gene 2] theta_mle_row result = 475.754
#> [theta_batch_cpp] Done.
#> Finish dispersion estimation @ 2026-01-26 12:39:38.994721
#> Step 2: Estimating library parameters...
#> Completed pilot data preprocessing @ 2026-01-26 12:39:38.996776
#> Processed 3 genes
#> UMI_per_cell_at_saturation = 6, Model = ZTNB
#> Mapping efficiency = 0.727

Arguments:

response_matrix: Gene-by-cell expression matrix from Step 1 (or NULL if h5_only = TRUE)
read_umi_table: QC dataframe from Step 1
mapping_efficiency: Mapping efficiency from Step 1
gene_list: Optional character vector to restrict analysis to specific genes
TPM_thres: Threshold for filtering lowly expressed genes (default: 0.1)
h5_only: If TRUE, the function will skip the construction of baseline expression dataframe to save time (default: FALSE)
n_threads: Number of parallel processing threads (default: NULL for single-threaded)

Note: The library estimation uses preseqR’s data-adaptive saturation curve fitting, which automatically selects between ZTNB (Zero-Truncated Negative Binomial) and RFA (Rational Function Approximation) methods based on the shape of the read-UMI distribution. This ensures optimal parameter estimation without requiring manual method selection.

Function Output

# Inspect structure of perturb-seq pilot data
str(pilot_data_perturbseq)
#> List of 3
#>  $ baseline_expression_stats:'data.frame':   5 obs. of  3 variables:
#>   ..$ response_id        : chr [1:5] "ENSG00000243485" "ENSG00000238009" "ENSG00000239945" "ENSG00000241860" ...
#>   ..$ relative_expression: num [1:5] 0.0909 0.3636 0.1818 0.1818 0.1818
#>   ..$ expression_size    : num [1:5] 401 484 468 468 468
#>  $ library_parameters       :List of 7
#>   ..$ method_used               : chr "ZTNB"
#>   ..$ L                         : num 37.8
#>   ..$ size                      : num 10000
#>   ..$ mu                        : num 0.344
#>   ..$ reads_norm                : num 1.62
#>   ..$ n_cells                   : num 8
#>   ..$ UMI_per_cell_at_saturation: num 4.72
#>  $ mapping_efficiency       : num 1

# Inspect structure of TAP-seq pilot data
str(pilot_data_tapseq)
#> List of 3
#>  $ baseline_expression_stats:'data.frame':   3 obs. of  3 variables:
#>   ..$ response_id        : chr [1:3] "ENSG00000238009" "ENSG00000239945" "ENSG00000241860"
#>   ..$ relative_expression: num [1:3] 0.5 0.25 0.25
#>   ..$ expression_size    : num [1:3] 487 476 476
#>  $ library_parameters       :List of 7
#>   ..$ method_used               : chr "ZTNB"
#>   ..$ L                         : num 36.2
#>   ..$ size                      : num 10000
#>   ..$ mu                        : num 0.25
#>   ..$ reads_norm                : num 1.5
#>   ..$ n_cells                   : num 6
#>   ..$ UMI_per_cell_at_saturation: num 6.03
#>  $ mapping_efficiency       : num 0.727

Format of each output:

baseline_expression_stats: Dataframe with columns:
- response_id: Ensembl gene identifier
- relative_expression: Estimated relative expression proportions for each gene, normalized to sum to 1 across all genes of interest
- expression_size: Estimated dispersion representing gene-specific expression variability
library_parameters: List with saturation curve parameters from preseqR (rSAC_fn_wrapper format):
- method_used: Selected method (“ZTNB” or “RFA”)
- UMI_per_cell_at_saturation: Estimated maximum UMI count per cell at infinite sequencing depth
- reads_norm: Normalization constant (reads per cell in pilot data)
- n_cells: Number of cells in pilot data
- Additional method-specific parameters (e.g., L, size, mu for ZTNB; coefs and poles for RFA)
mapping_efficiency: Adjusted mapping efficiency, accounting for the fraction of reads mapped to the genes of interest

Note: The relative expression is higher and the mapping efficiency is lower in the TAP-seq example because of significantly smaller target gene panel compared to Perturb-seq.

Statistical Models Used in Step 2

The reference_data_processing() function fits two statistical models to extract parameters needed for power analysis.

Negative Binomial Expression Model

For each gene, the function fits a negative binomial (NB) model to characterize the distribution of gene expression levels across cells. The model estimates two parameters for each gene:

relative_expression: The relative expression level of the gene
expression_size: The dispersion parameter (reciprocal of variance relative to mean)

These parameters capture both the average expression level and the biological variability of each gene across cells.

Read-UMI Saturation Curve (preseqR)

The function uses the preseqR package to fit a saturation curve that relates sequencing reads to unique UMI counts. The preseqR approach:

Data-adaptively selects between two methods based on the estimated shape parameter:
- ZTNB (Zero-Truncated Negative Binomial): Used when shape > 1, provides closed-form predictions
- RFA (Rational Function Approximation): Used when shape ≤ 1, provides better extrapolation for low-complexity libraries
In rare edge cases, if the RFA estimator is invalid (rarely occurs in practice), the function returns a constant prediction based on the observed data. In this case, the saved parameters include:
- method_used = "RFA" (method attempted)
- valid_estimator = FALSE (indicates invalid estimator)
- constant_value: The total observed UMI count
- UMI_per_cell_at_saturation: Set to observed UMI per cell
- Standard parameters: reads_norm, n_cells
Estimates key parameters:
- UMI_per_cell_at_saturation: Maximum UMI count per cell at infinite sequencing depth
- Method-specific parameters for accurate saturation curve prediction

The preseqR methodology provides robust parameter estimation without requiring manual method selection or parameter tuning. The data-adaptive approach ensures optimal performance across diverse experimental designs and library complexities.

Comparing Default Dataset Saturation Curves

PerturbPlan includes several default datasets from different cell types and experimental systems. This section demonstrates how to visualize and compare the read-UMI saturation curves across all default datasets.

Load Default Datasets

# Load all perturbplan default datasets
data("K562_Gasperini", package = "perturbplan")
data("K562_10x", package = "perturbplan")
data("K562_Ray", package = "perturbplan")
data("A549_Sakellaropoulos", package = "perturbplan")
data("THP1_Yao", package = "perturbplan")
data("T_CD8_Shifrut", package = "perturbplan")
data("iPSC_Tian", package = "perturbplan")
data("iPSC_neuron_Tian", package = "perturbplan")

# Create a list of all datasets with their display names
default_datasets <- list(
  "K562 (Gasperini)" = K562_Gasperini,
  "K562 (10x)" = K562_10x,
  "K562 (Ray)" = K562_Ray,
  "A549 (Sakellaropoulos)" = A549_Sakellaropoulos,
  "THP-1 (Yao)" = THP1_Yao,
  "CD8+ T (Shifrut)" = T_CD8_Shifrut,
  "iPSC (Tian)" = iPSC_Tian,
  "iPSC neuron (Tian)" = iPSC_neuron_Tian
)

Generate Saturation Curve Predictions

# Find the maximum UMI_per_cell_at_saturation across all datasets
max_umi_saturation <- max(sapply(default_datasets, function(dataset_obj) {
  dataset_obj$library_parameters$UMI_per_cell_at_saturation
}))

# Create a grid of reads_per_cell values for prediction
# Extend to 10x the maximum UMI saturation
reads_grid <- 10^seq(log10(1000), log10(max_umi_saturation * 10), length.out = 200)

# Generate predictions for each dataset using perturbplan:::fit_read_UMI_curve_cpp
all_datasets_df <- bind_rows(
  lapply(names(default_datasets), function(dataset_name) {
    dataset_obj <- default_datasets[[dataset_name]]
    library_params <- dataset_obj$library_parameters

    library_size_pred <- perturbplan:::fit_read_UMI_curve_cpp(reads_grid, library_params)

    data.frame(
      reads_per_cell = reads_grid,
      library_size = library_size_pred,
      dataset = dataset_name,
      stringsAsFactors = FALSE
    )
  })
)

Visualize Saturation Curves

# Define color scheme for all datasets using a colorblind-friendly palette
dataset_colors <- c(
  "K562 (Gasperini)" = "#E69F00",        # orange
  "K562 (10x)" = "#56B4E9",              # sky blue
  "K562 (Ray)" = "#009E73",              # bluish green
  "A549 (Sakellaropoulos)" = "#F0E442",  # yellow
  "THP-1 (Yao)" = "#0072B2",             # blue
  "CD8+ T (Shifrut)" = "#D55E00",        # vermillion
  "iPSC (Tian)" = "#CC79A7",             # reddish purple
  "iPSC neuron (Tian)" = "#999999"       # gray
)

# Create the comparison plot
ggplot(all_datasets_df, aes(x = reads_per_cell, y = library_size, color = dataset)) +
  geom_line(linewidth = 1.25) +
  scale_color_manual(values = dataset_colors) +
  scale_x_log10(labels = scales::comma) +
  scale_y_log10(labels = scales::comma) +
  labs(
    x = "Reads per cell",
    y = "UMIs per cell",
    color = NULL,
    title = "UMI-read saturation curves for PerturbPlan default datasets"
  ) +
  theme_bw() +
  theme(
    plot.title      = element_text(size = 12, hjust = 0.5, vjust = 2),
    axis.title.x    = element_text(size = 12),
    axis.text.x     = element_text(size = 10, hjust = 0.7),
    axis.title.y    = element_text(size = 12),
    axis.text.y     = element_text(size = 10),
    legend.title    = element_blank(),
    legend.text     = element_text(size = 10),
    legend.position = "bottom"
  )

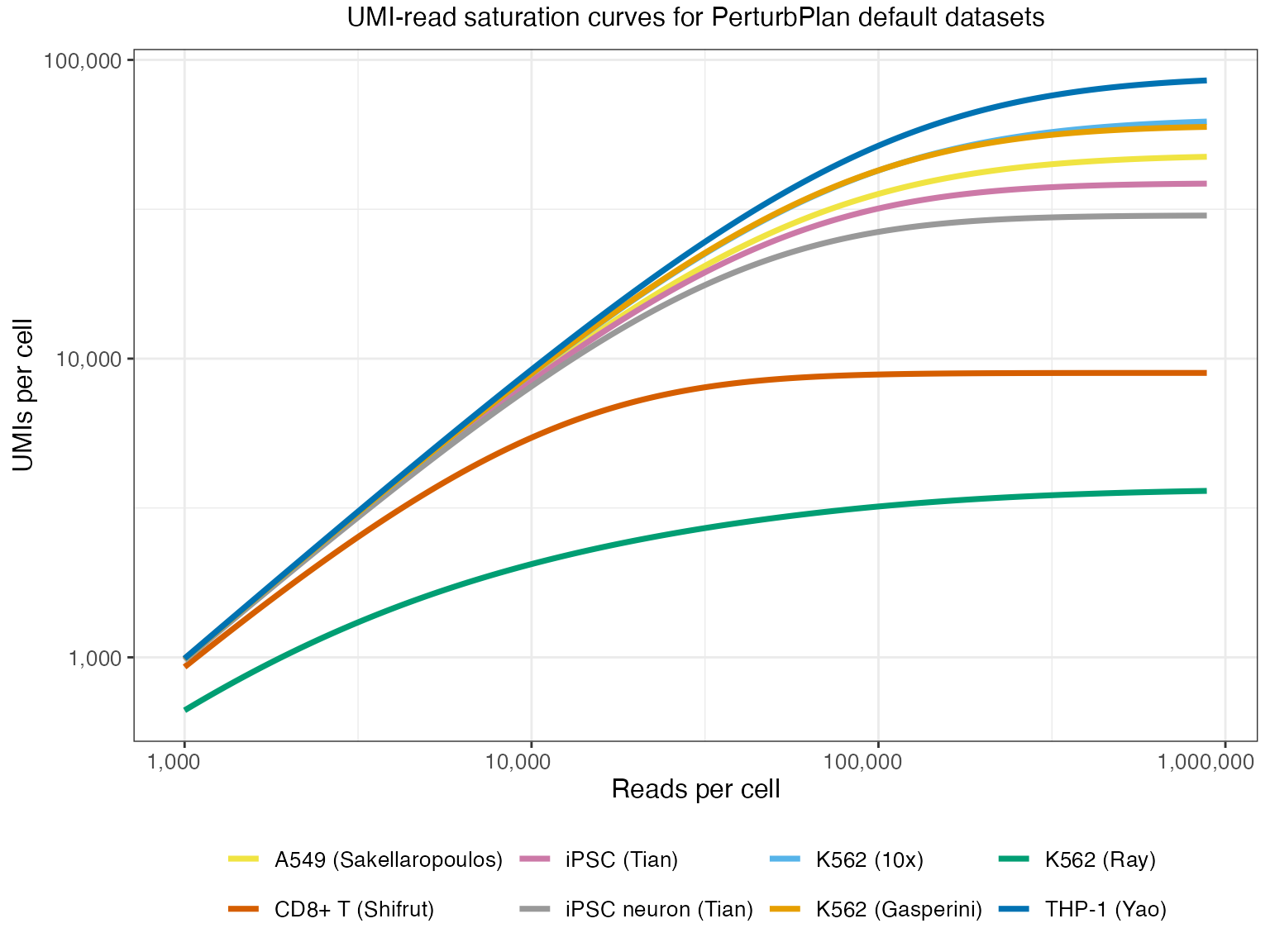

Interpretation

This comparison plot reveals important differences in sequencing saturation characteristics across cell types and experimental systems:

Saturation plateau: Different datasets reach different maximum UMI counts, reflecting differences in transcriptional complexity and library preparation protocols
Cell type and assay consistency: K562 (Gasperini) and K562 (10x) share the same cell type and assay, and their curves are much closer to each other than to other datasets. This validates our approach of providing default data based on cell type and assay
Implications for experimental design: These saturation curves inform optimal sequencing depth choices for different cell types

The fitted saturation curves from your own pilot data (generated in Step 2 above) can be used similarly to predict library sizes for power analysis in experimental design.

Overview

Step 1: Process Cell Ranger Outputs

Input Requirements

Function Usage

Function Output

Step 2: Extract Reference Data

Input Requirements

Function Usage

Function Output

Statistical Models Used in Step 2

Negative Binomial Expression Model

Read-UMI Saturation Curve (preseqR)

Comparing Default Dataset Saturation Curves

Load Default Datasets

Generate Saturation Curve Predictions

Visualize Saturation Curves

Interpretation

See Also
